State-of-the-art aluminum frameset material features best-in-class strength-to-weight ratios and unique welding technologies for a high-performance ride quality.

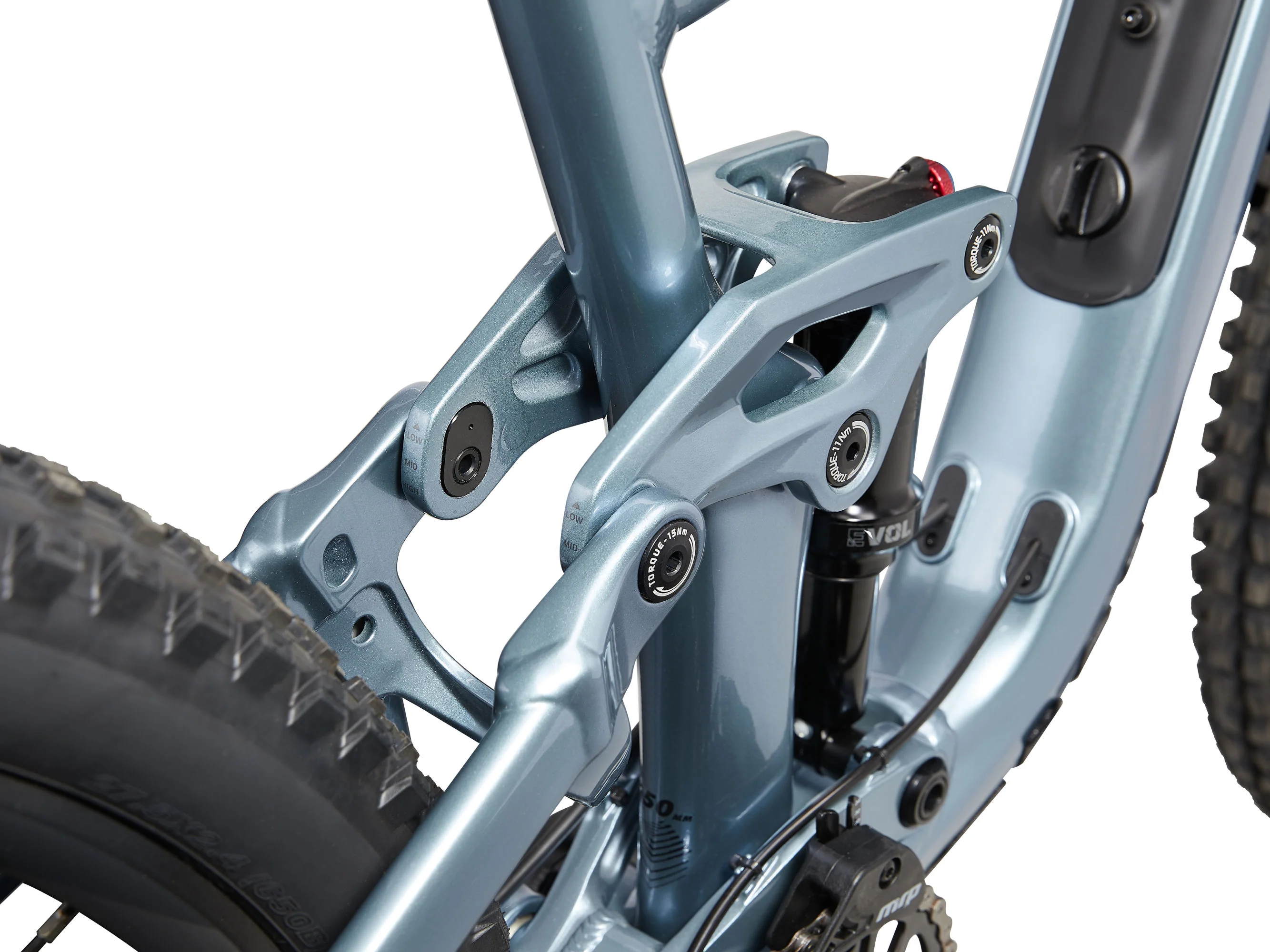

Maestro Suspension Technology
Four strategically positioned pivot points and two linkages work together to create a single floating pivot point for the most active, efficient suspension system.
Advanced Forged Composite Technology
An upper rocker arm created with Advanced Forged Composite Technology for increased stiffness, durability, and lighter weight.
OverDrive
Designed to provide precise front-end steering performance, the system’s oversized headset bearings and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Adjustable Geometry
The flip chip Maestro 3 allows you to quickly adjust the geometry of the Intrigue LT to better suit riding conditions and rear-wheel size choice. Using two different flip chips – a combination high/ low and a dedicated mid-position chip – riders can change the head tube angle, seat tube angle and bottom bracket height using eccentric hardware located on the upper rocker arm of the rear suspension.
MX Configuration
Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear and can accommodate a 27.5-inch wheel in the rear.

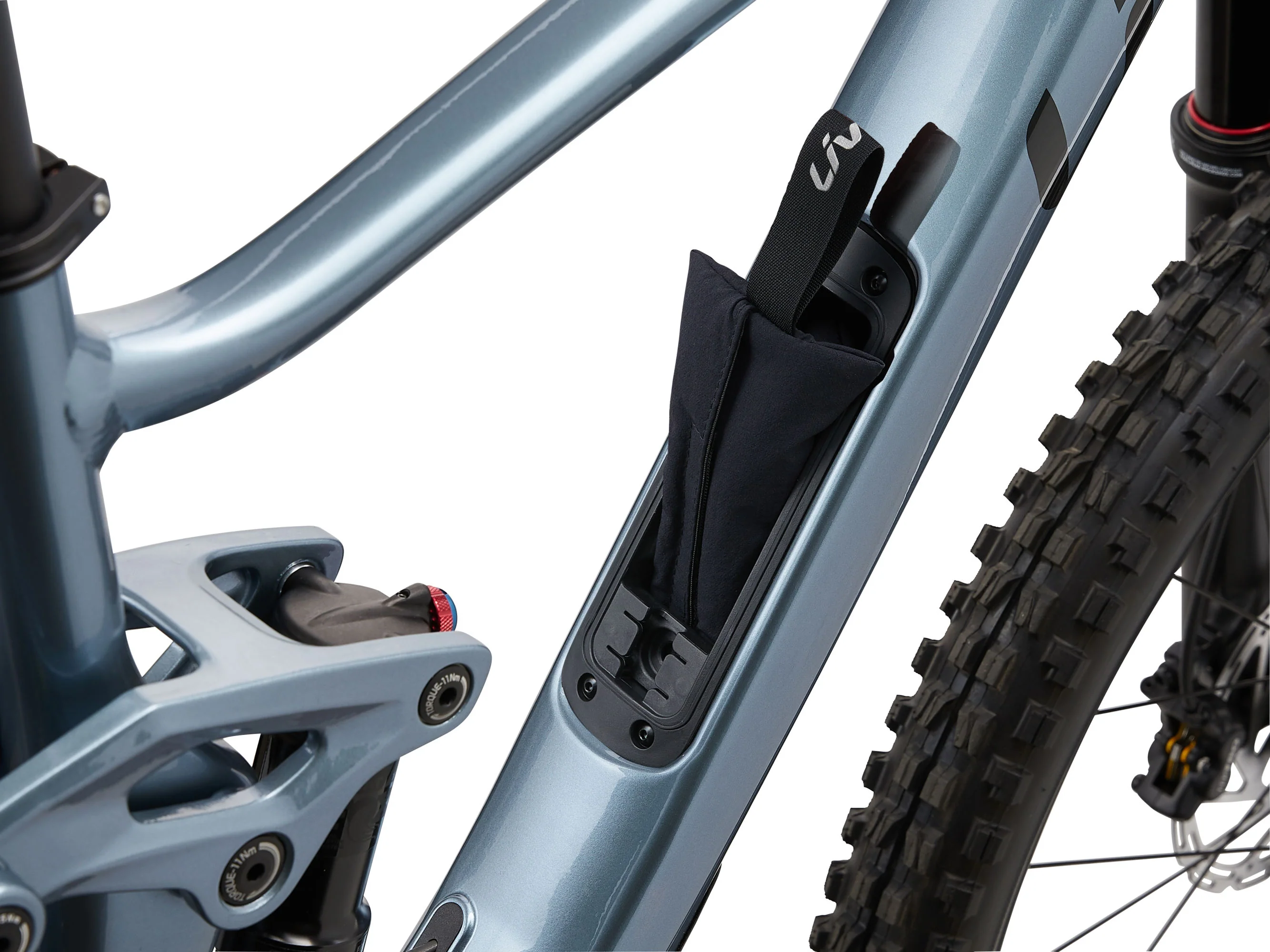

Integrated Down Tube Storage
Open a latch on the down tube to reveal an internal compartment that contains a water-resistant bag where you can store essential items including an inner tube, CO2 cartridge, tire lever, snacks, or a multi-tool.
Tubeless
Tubeless ready, so you can run lower tire pressure for added traction and control.
Compatible with 2.5-inch Tires
Clearance to run up to 2.5-inch tires for increased stability.
Boost Hub Spacing
Boost 15x110 [F], 12X148 [R] hub spacing improves stiffness, trail handling and tire clearance.

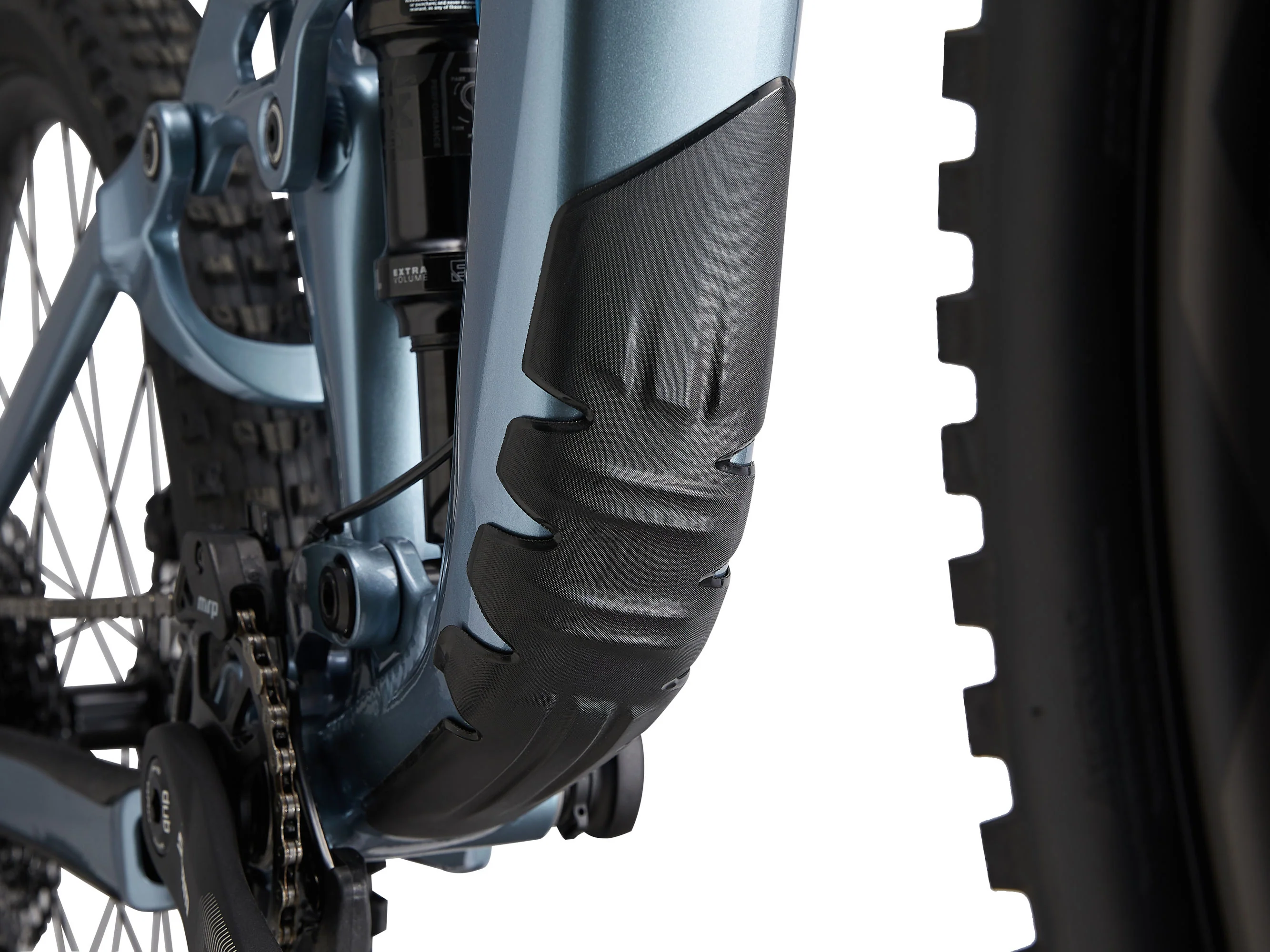

Frame Protection

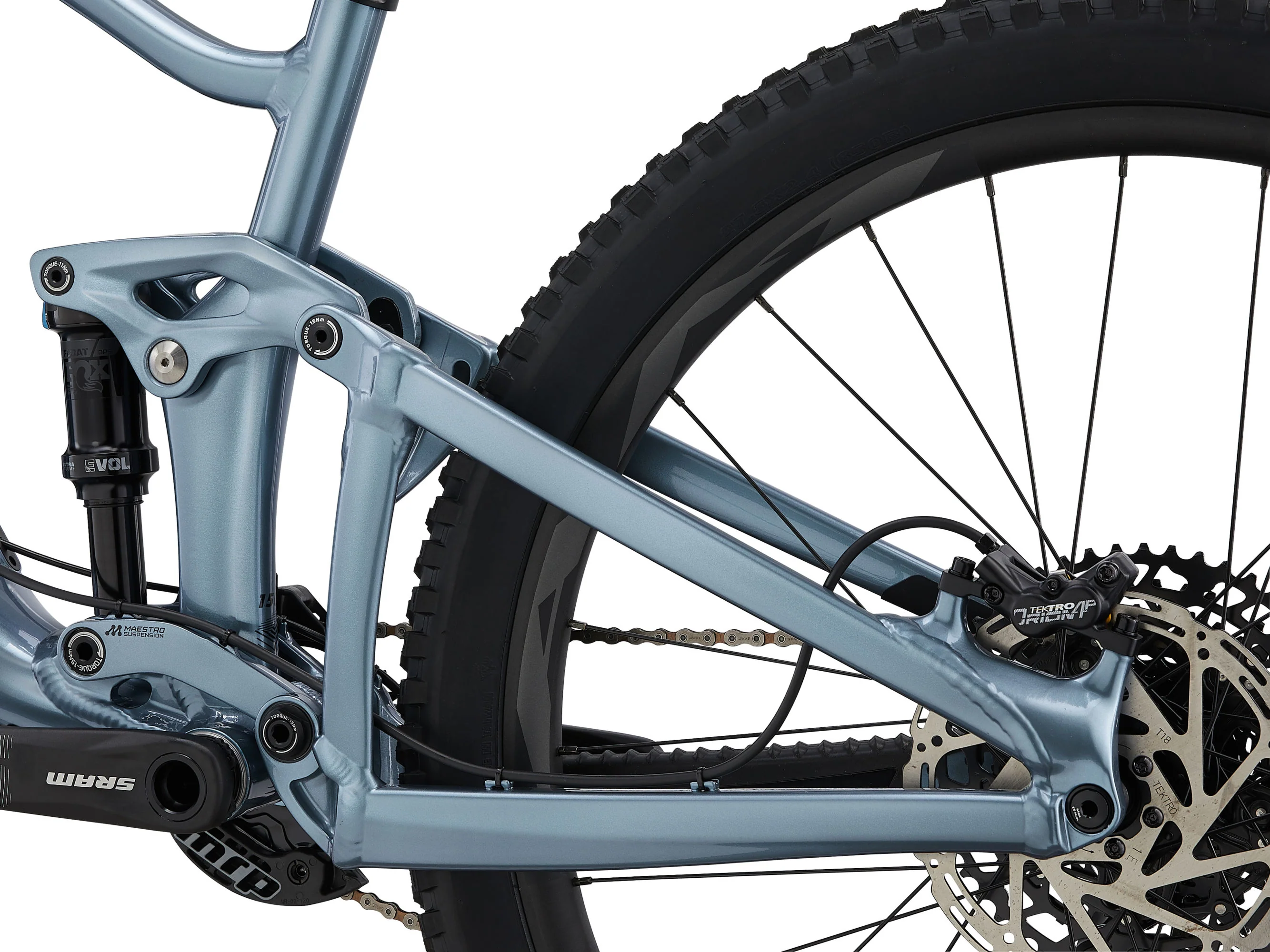

Updated chainstay and down tube protection help keep rock strikes and chain slap damage at bay.
Extras
Internal cable routing, integrated cable ports, water bottle cage mounts on all frame sizes and UDH and Live Valve compatible.
-
SizesXS, S: MX only M, L: 29"" F&R out of the box, MX compatible
-
ColoursAged Denim
-

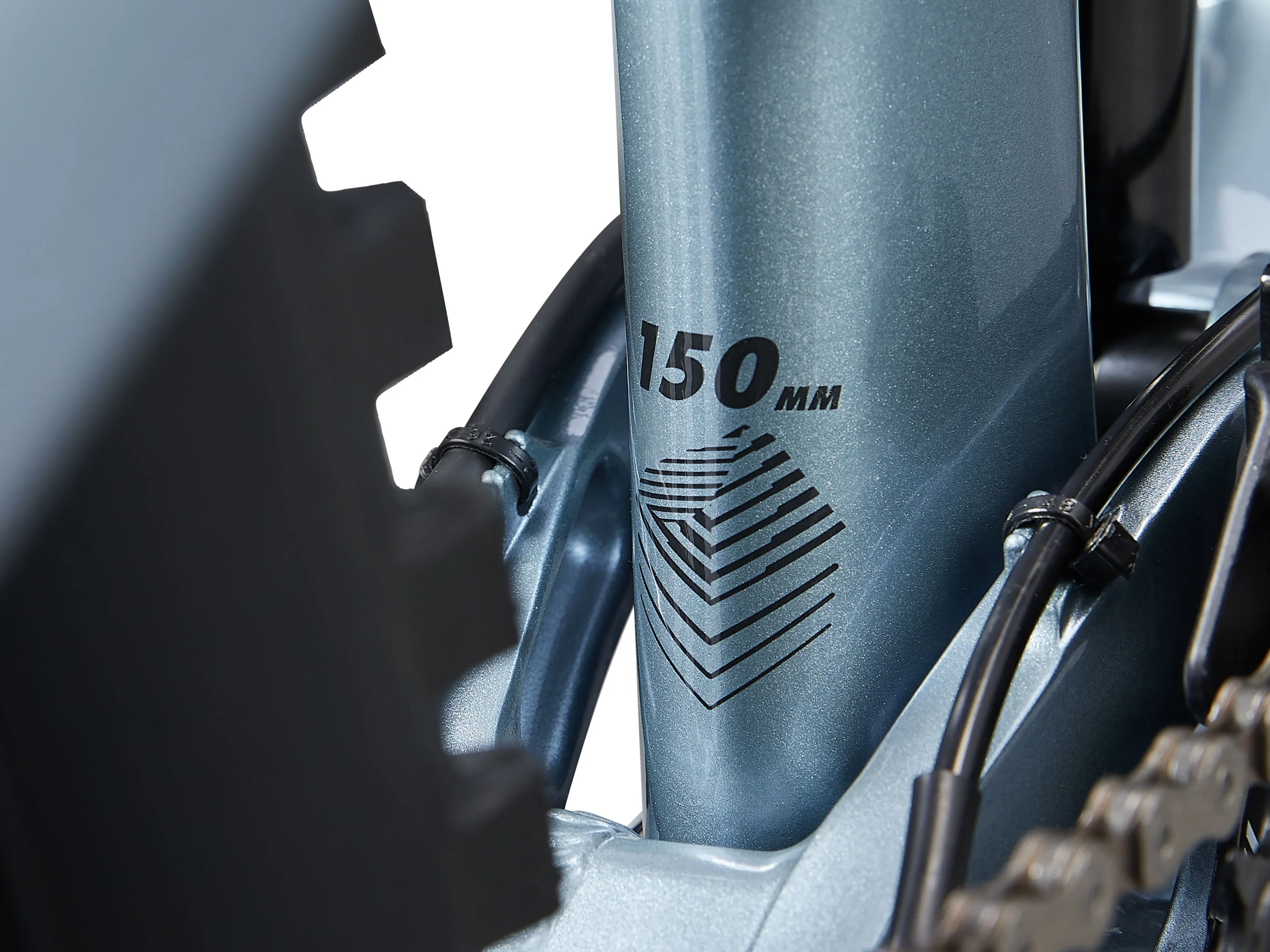

FrameALUXX SL-Grade aluminum front and rear triangles, 150mm Maestro Suspension, flip chip, integrated down tube storage
-
ForkRockShox 35 Gold RL, 160mm, Motion Control damper, Boost, 15x110, 110 Maxle Stealth, tapered, 44mm offset, custom tuned for Liv
-
ShockFox Float DPS Performance 185/55, custom tuned for Liv
-
HandlebarGiant Contact, 35mm XS: 760mm, S:760mm, M:760mm, L:780mm
-
GripsLiv Tactal single lock-on XS/S: 120mm, M/L: 130mm
-
StemGiant Contact TR35, 35mm XS:40mm, S:50mm, M:50mm, L:50mm
-
SeatpostGiant Contact Switch dropper, remote XS: 100mm travel / 30.9 x 345mm S: 125mm travel / 30.9 x 395mm M & L: 150mm travel / 30.9
-
SaddleLiv Sylvia
-
PedalsN/A
-
ShiftersSRAM SX Eagle, 1x12
-
Front DerailleurN/A
-
Rear DerailleurSRAM SX Eagle
-
BrakesTektro M745, hydraulic, Tektro rotors [F]203mm, [R]160mm
-
Brake LeversTektro HDM-745
-
CassetteSRAM SX Eagle, 11x50
-
ChainSRAM SX Eagle
-
CranksetSRAM SX Eagle DUB, 30t, 55mm chainline XS:165mm, S:170mm, M:170mm
-
Bottom BracketSRAM DUB, press fit
-
RimsGiant AM, tubeless ready, sleeve-joint, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F]29, [R]29
-
Hubsalloy
-
Spokesstainless
-
Tires[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless
-
ExtrasMRP AMg CS chainguide, 3M tailgate protector, tubeless prepared, max tire size 2.5", max chainring size 32t
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
