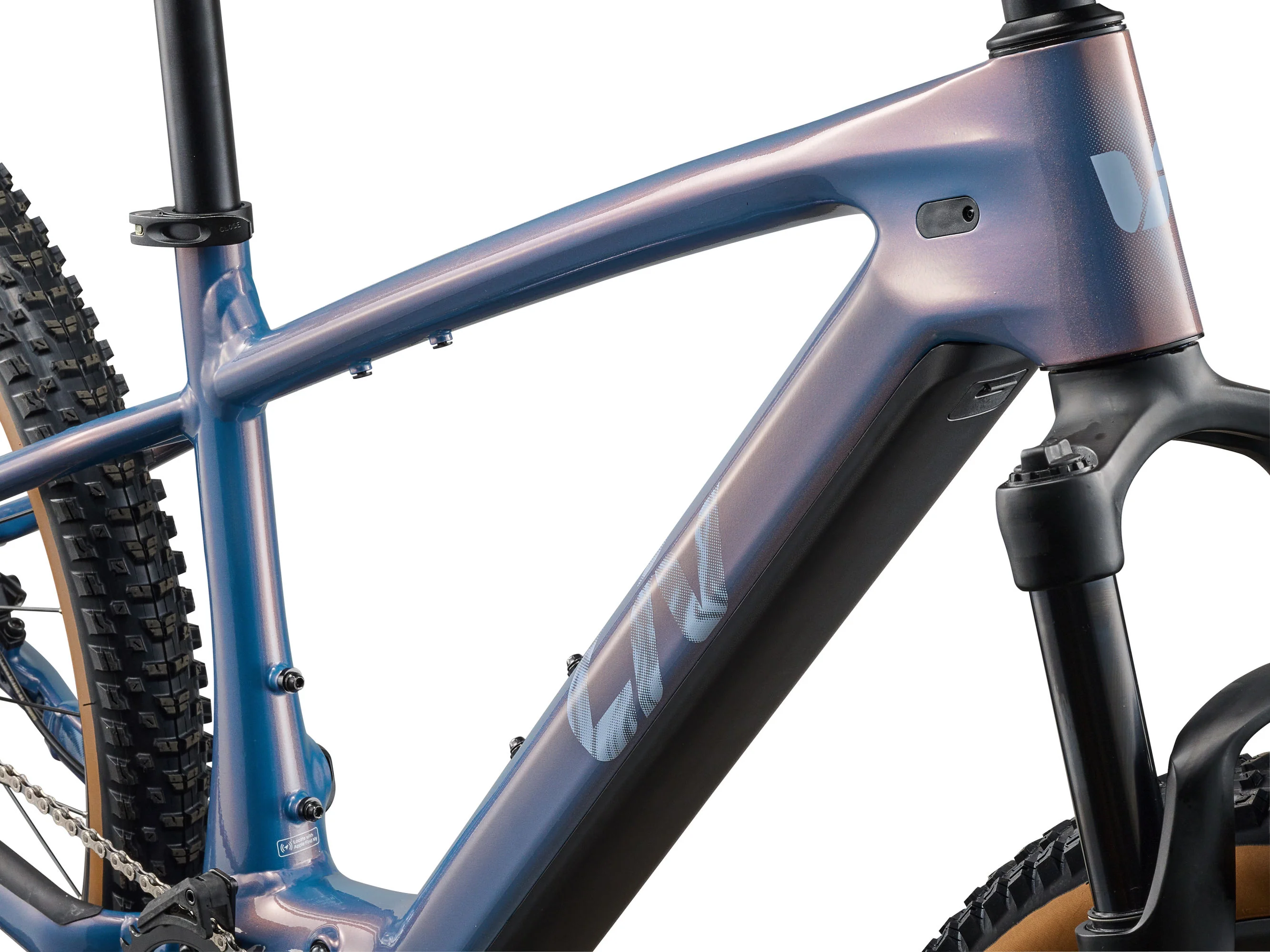

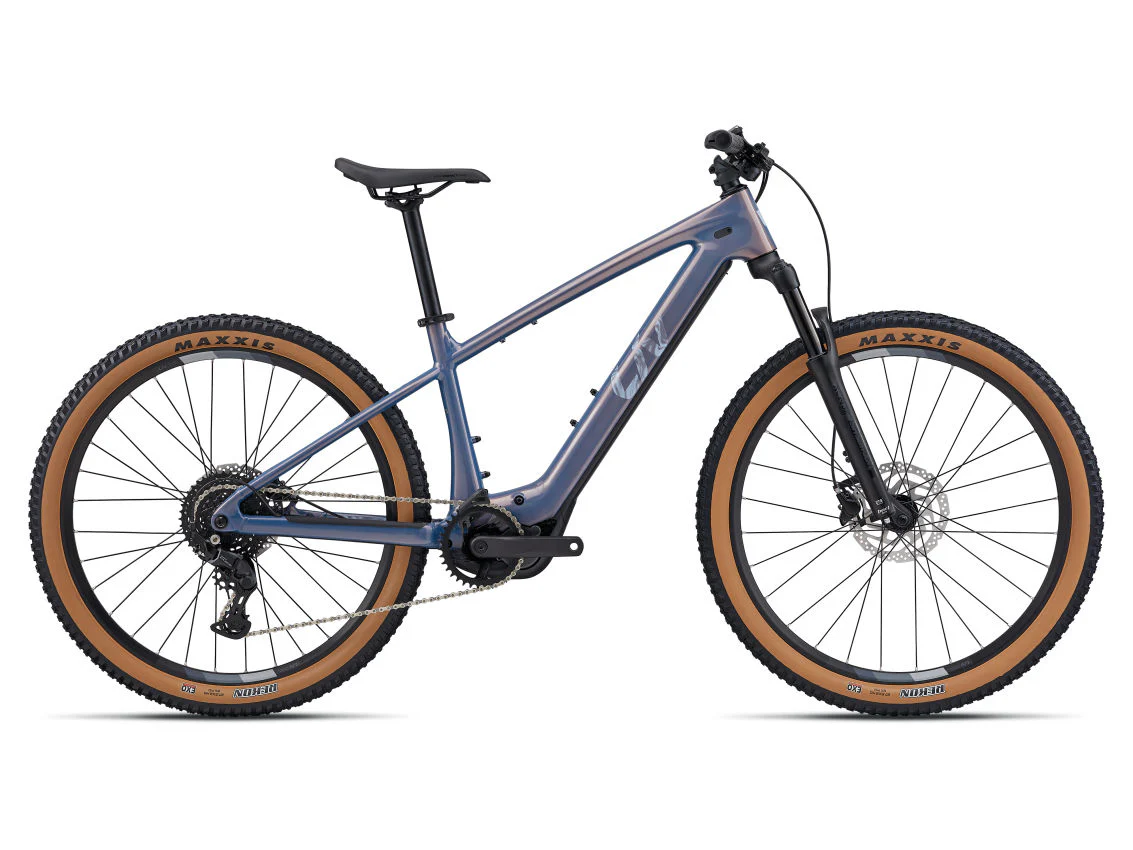

Lightweight aluminum frame made in our industry-leading aluminum manufacturing facility, contributes to weight reduction and a quick, agile ride feel.

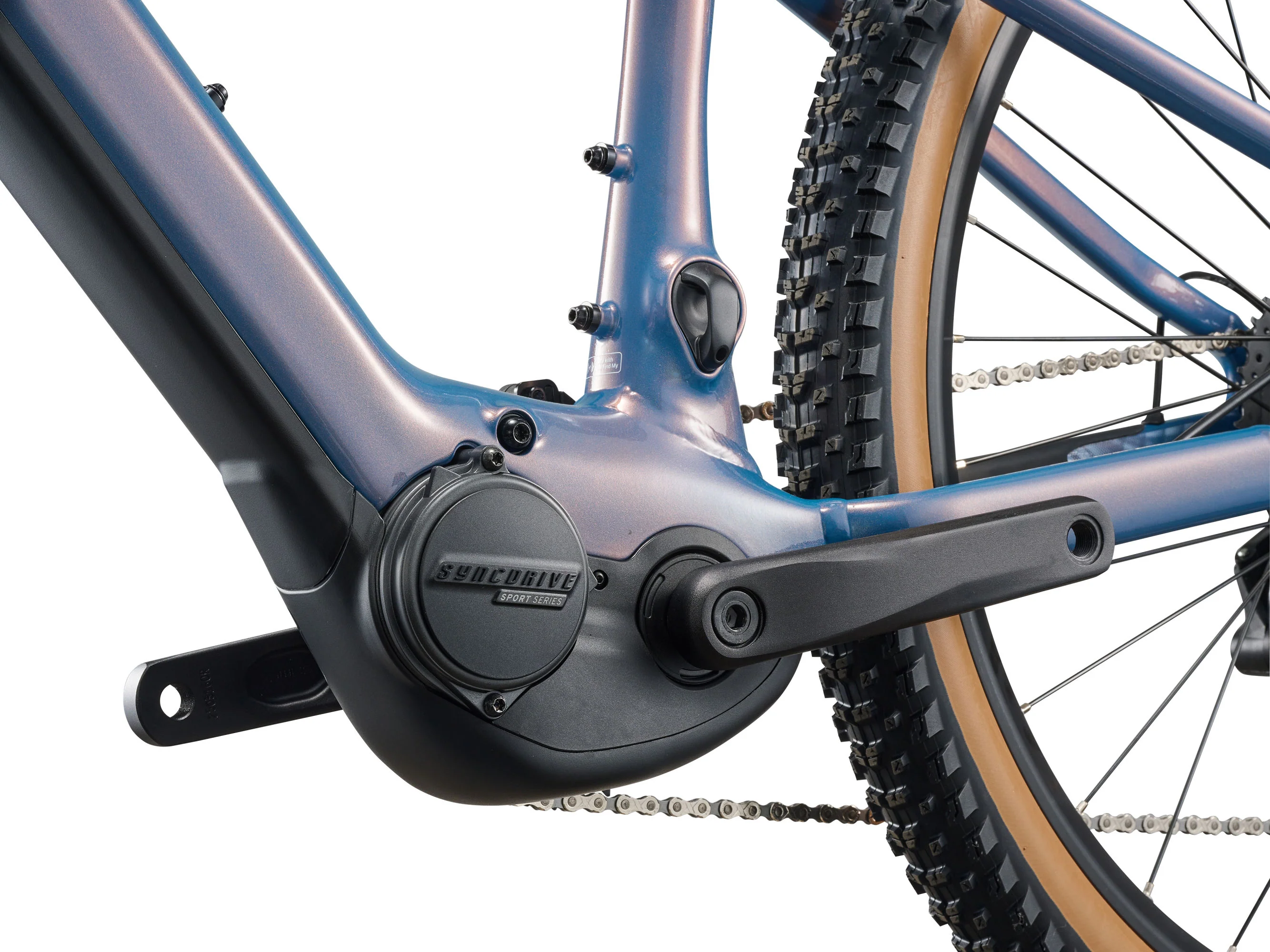

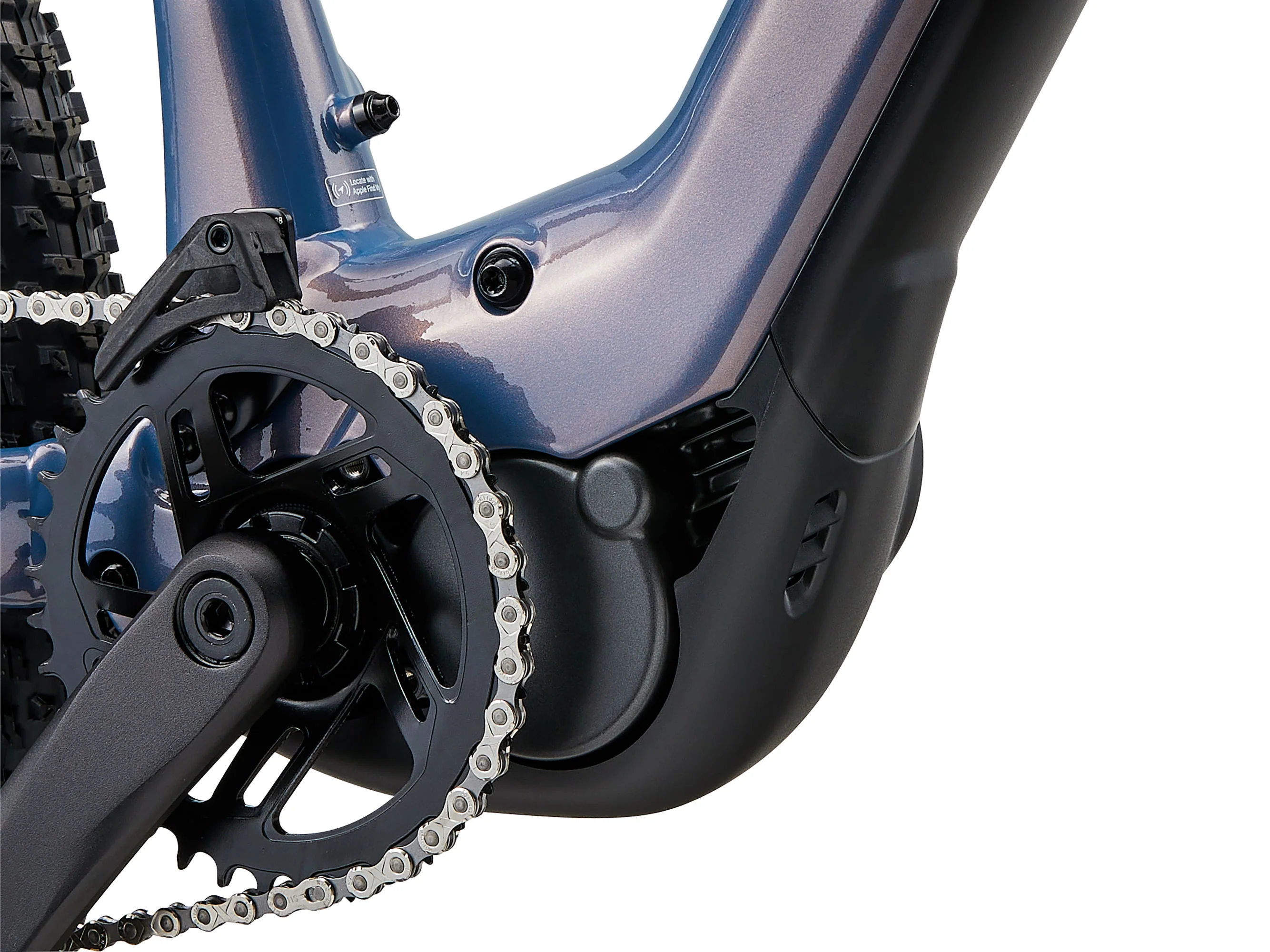

SYNCDRIVE SPORT 2 MOTOR
The powerful SyncDrive Sport 2 motor provides 75Nm of torque, for smooth natural-feeling pedal assist power.
ENERGYPAK 430Wh BATTERY
Stealthily integrated into the down tube, the easy-to-remove EnergyPak 430Wh battery provides long-lasting power to go the miles you need. Need to go further? Compatible with the 200Wh range extender.

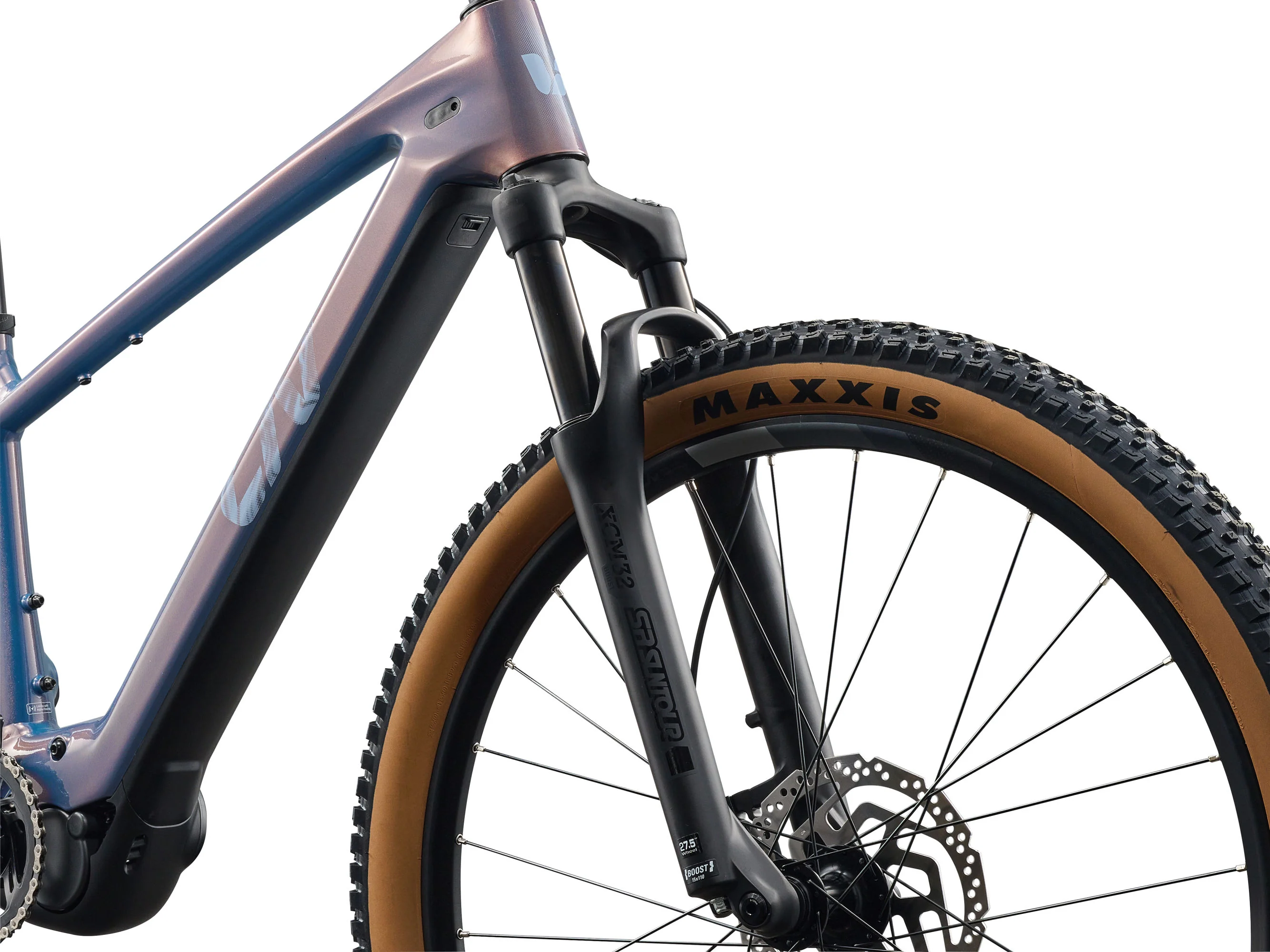

FRONT SUSPENSION
Front fork with 100mm of suspension increases riding comfort and control over rough terrain.
27.5 OR 29-INCH WHEELS
We’ve matched each frame size with the ideal wheels, 27.5-inch on XS and S for agility, 29-inch on M and L for speed and stability—delivering the optimal setup for every rider.

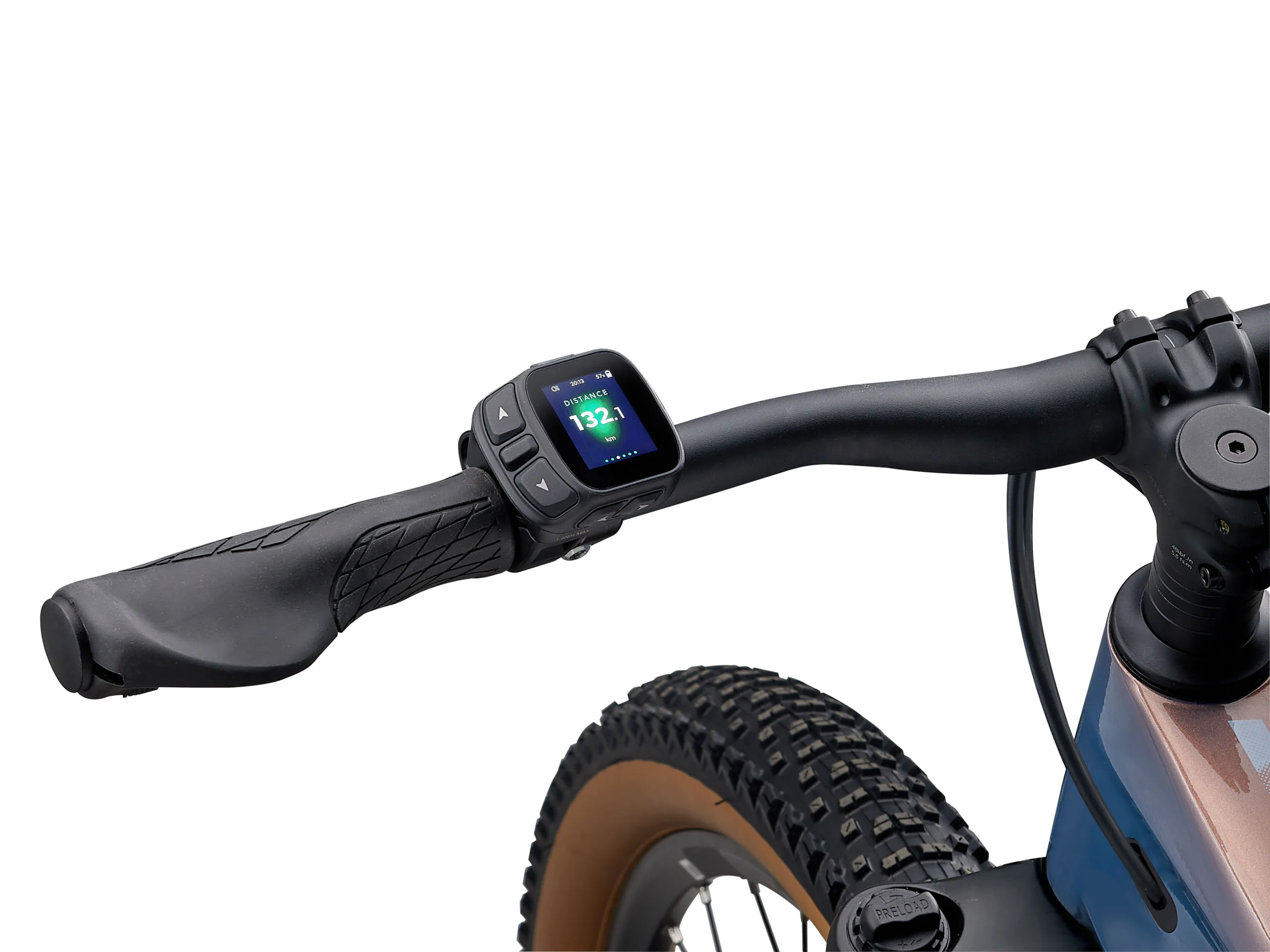

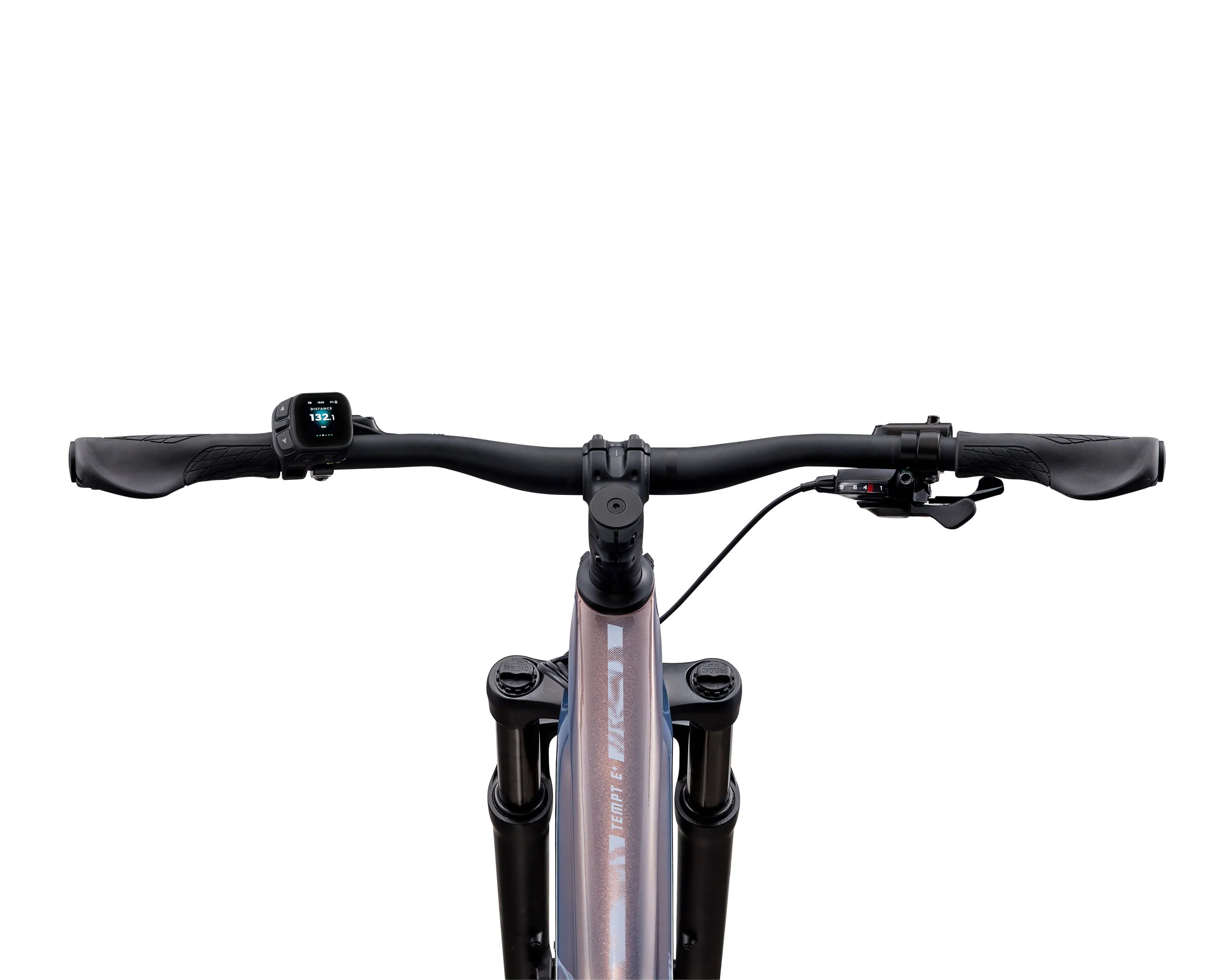

RIDECONTROL DASH 2
This minimalist display features integrated control buttons and a color screen for easy data viewing. It's fully compatible with the RideControl App and includes remote E-lock functionality, plus Apple Find My integration to help you track your bike's location.
HYDRAULIC DISC BRAKES
Hydraulic disc brakes for excellent braking power.

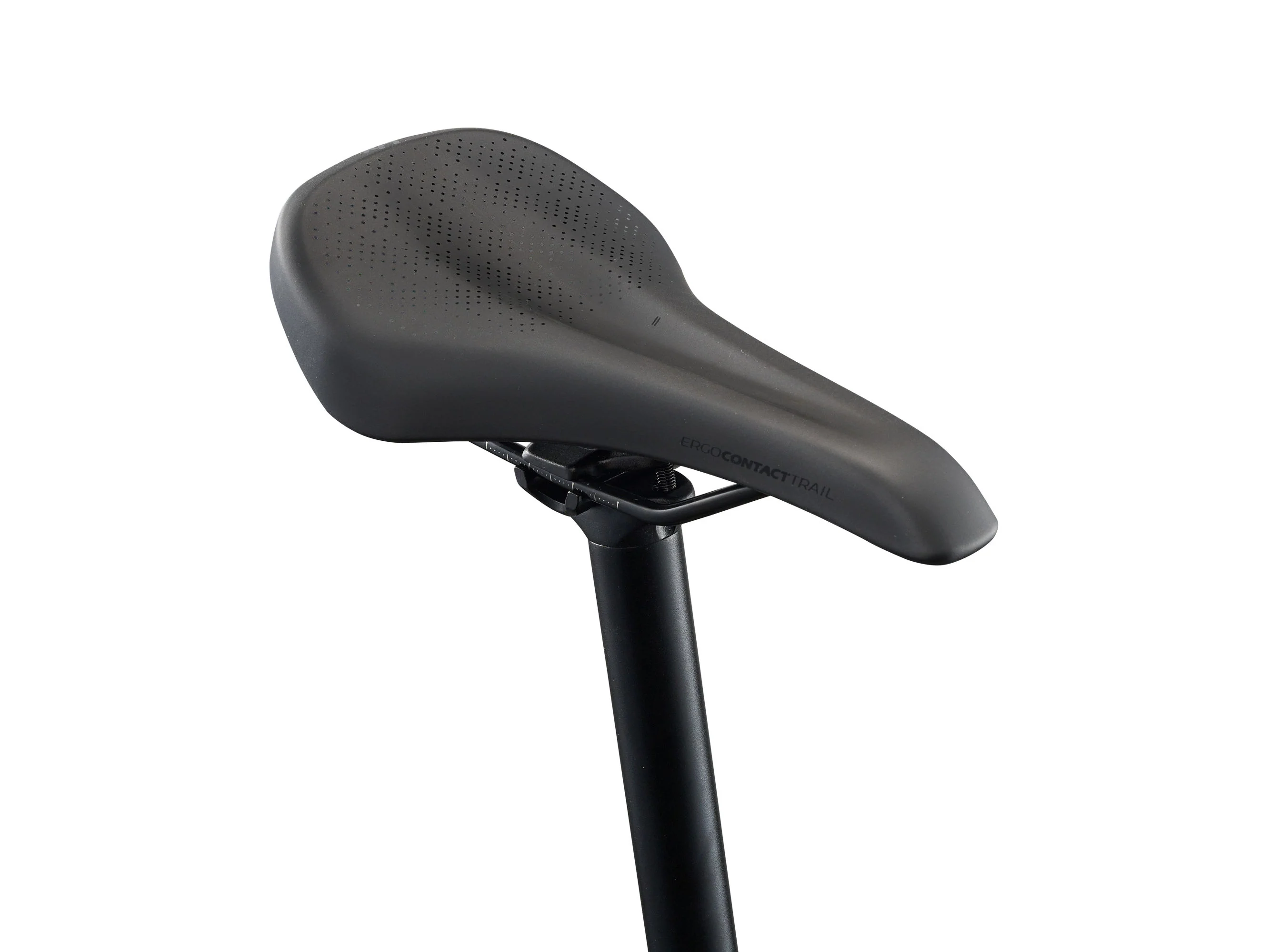

WOMEN-CENTRIC TOUCH POINT
Saddle and grips designed for women and optimized for off-road E-bike riding.
FULL ACCESSORIES SET
Equipped with two water bottle mounts, fenders mount, kickstand mount and a MIK rack mount allows for easier expansion in the future.
| XS | S | M | L | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 365 | 405 | 445 | 485 |
| A1 Seat Post Insertion Depth (mm) | 170 | 200 | 240 | 260 |
| B Seat Tube Angle | 78.0° | 78.0° | 74.0° | 74.0° |
| C Top Tube Length (mm) | 560 | 570 | 595 | 615 |
| D Head Tube Length (mm) | 110 | 115 | 105 | 115 |
| E Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° |
| F Fork Rake (mm) | 44 | 44 | 46 | 46 |
| G Trail (mm) | 106 | 106 | 104 | |
| H Wheelbase (mm) | 1151 | 1162 | 1139 | 1160 |
| I Chain Stay Length (mm) | 450 | 450 | 470 | 470 |
| J Bottom Bracket Drop (mm) | 45 | 45 | 60 | 60 |
| K Stack (mm) | 596 | 600 | 618 | 627 |
| L Reach (mm) | 433 | 442 | 417 | 435 |
| M Stand Over Height (mm) | 717 | 732 | 750 | |
| N Handlebar Width (mm) | 690 | 750 | 750 | 750 |
| O Stem Length (mm) | 50 | 50 | 50 | 60 |
| P Crank Length (mm) | 165 | 165 | 165 | |
| Q Wheel Size | 27.5+ | 27.5+ | 29" | 29" |
