The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.

Key Performance Factors

Modern MTB Design

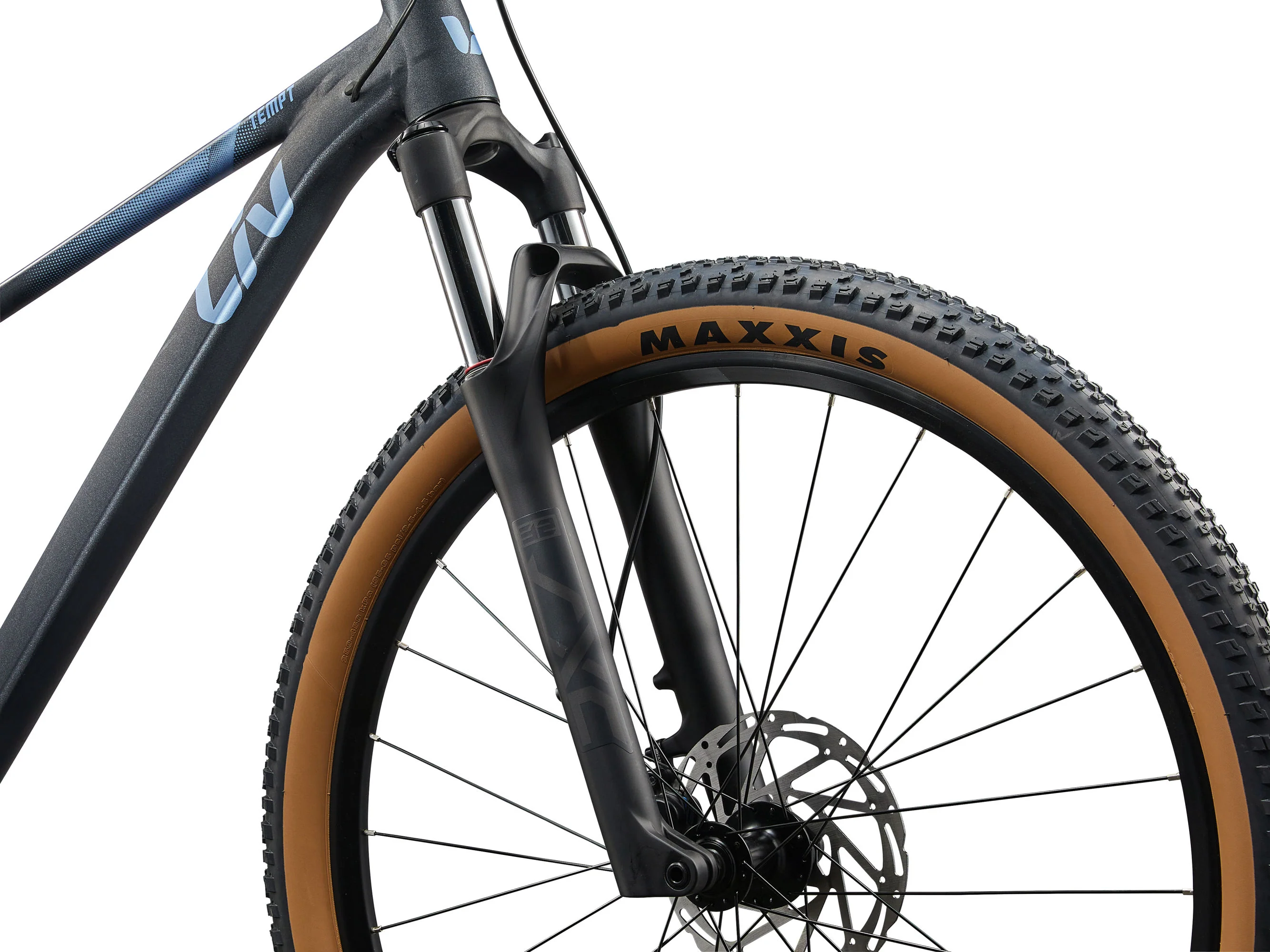

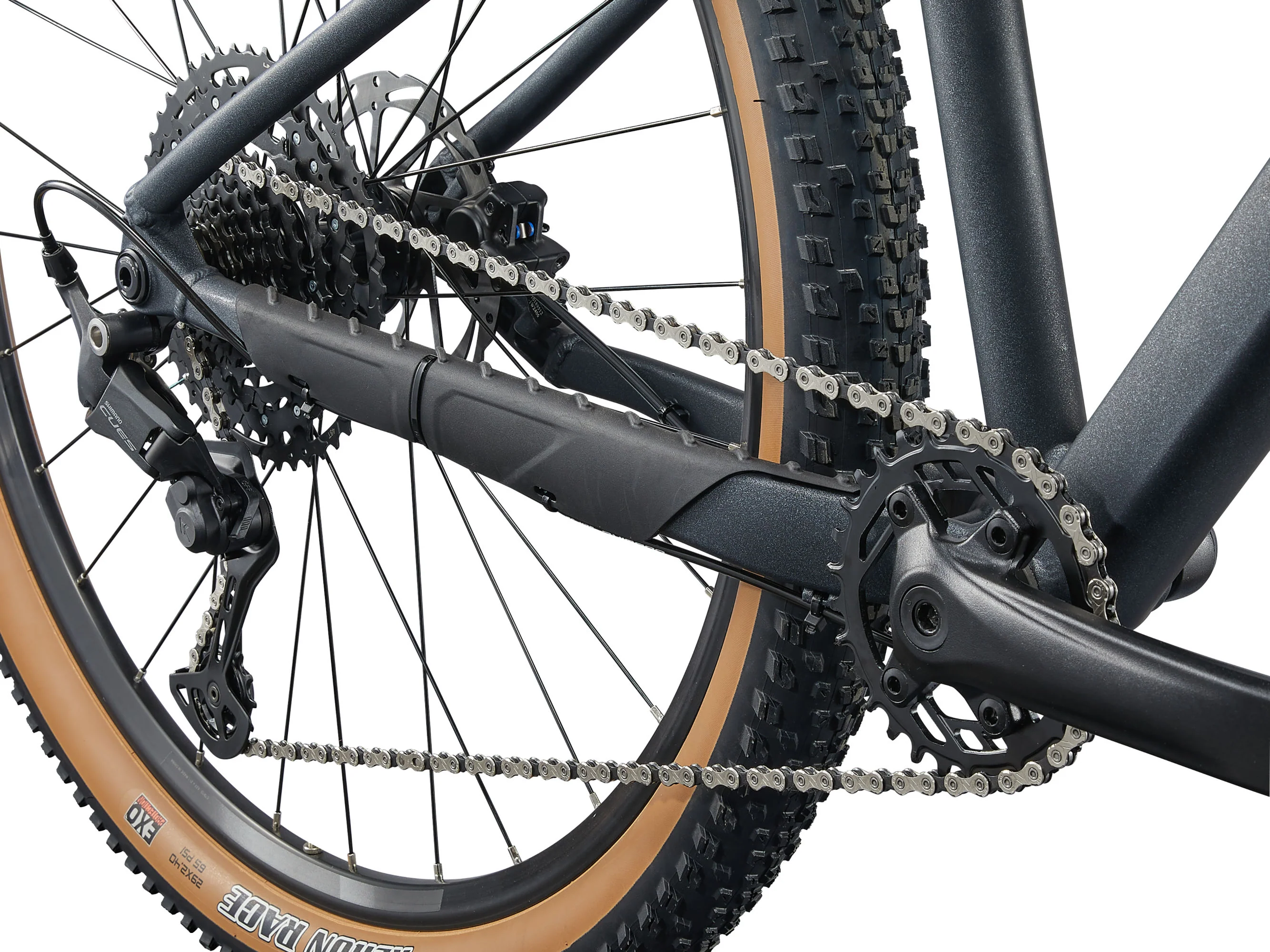

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)

Off-Road Control
The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.

Light and Durable

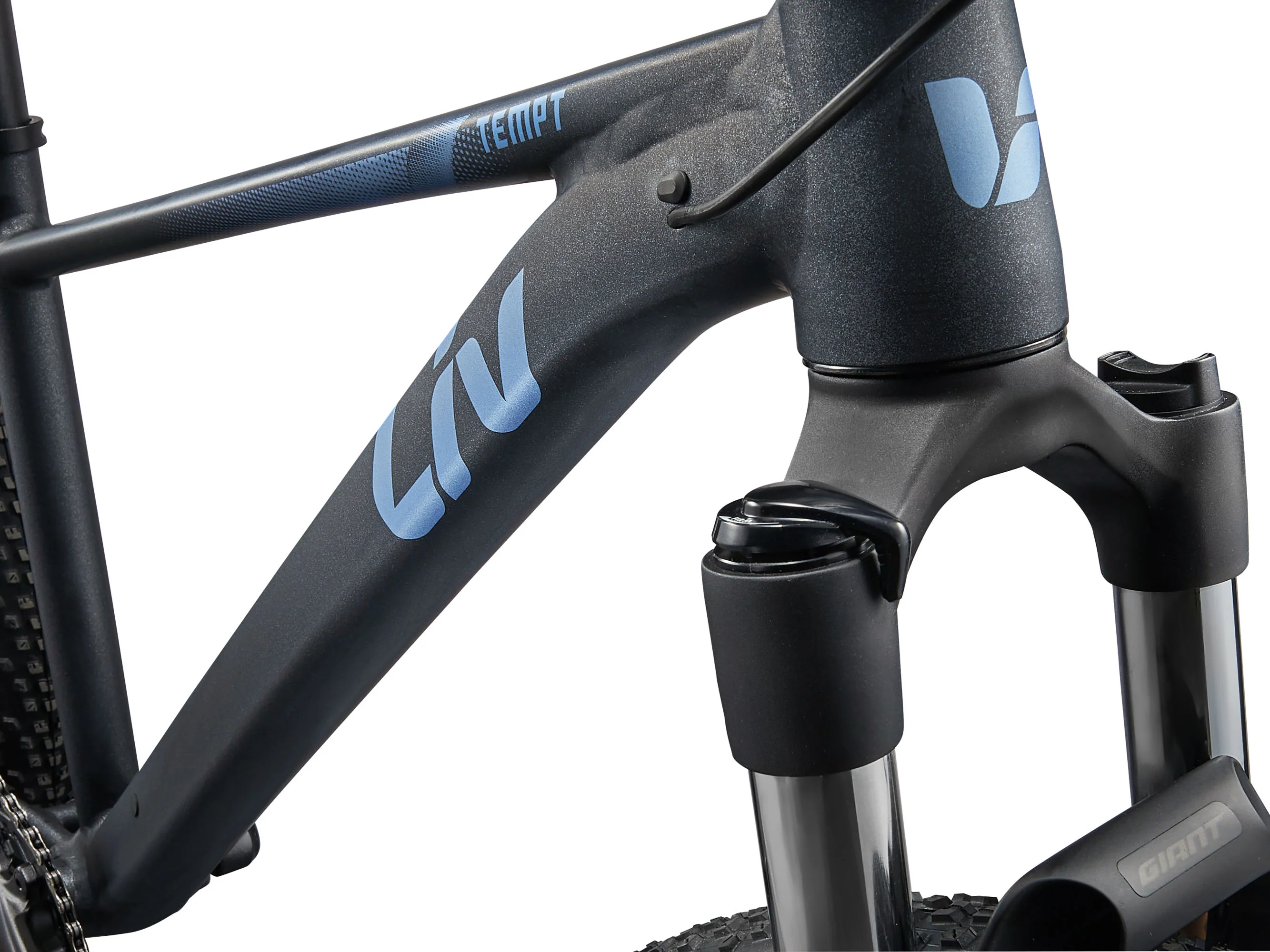

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.

		XS (27.5")	S (27.5")	S (29")	M (29")	L (29")
A	Seat Tube Length (mm)	330	365	380	410	450
A1	Seat Post Insertion Depth (mm)	280	310	330	360	220
B	Seat Tube Angle	74.0°	74.0°	74.5°	74.5°	74.0°
C	Top Tube Length (mm)	538	558	571	599	610
D	Head Tube Length (mm)	90	95	90	100	105
E	Head Tube Angle	67.0°	67.0°	67.5°	67.5°	68.5°
F	Fork Rake (mm)	44	44	44	44	51
G	Trail (mm)	105.2	105.2	108.9	108.9	94.3
H	Wheelbase (mm)	1080	1101	1129	1158	1160
I	Chain Stay Length (mm)	440	440	455	455	455
J	Bottom Bracket Drop (mm)	45	45	55	55	55
K	Stack (mm)	548	553	593	602	610
L	Reach (mm)	381	400	407	432	435
M	Stand Over Height (mm)	680	689	689	708	757
N	Handlebar Width (mm)	690	690	690	690	750
O	Stem Length (mm)	40	40	40	50	50
P	Crank Length (mm)	165	165	170	170	175
Q	Wheel Size	27.5"	27.5"	29"	29"	29"
