“These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.”

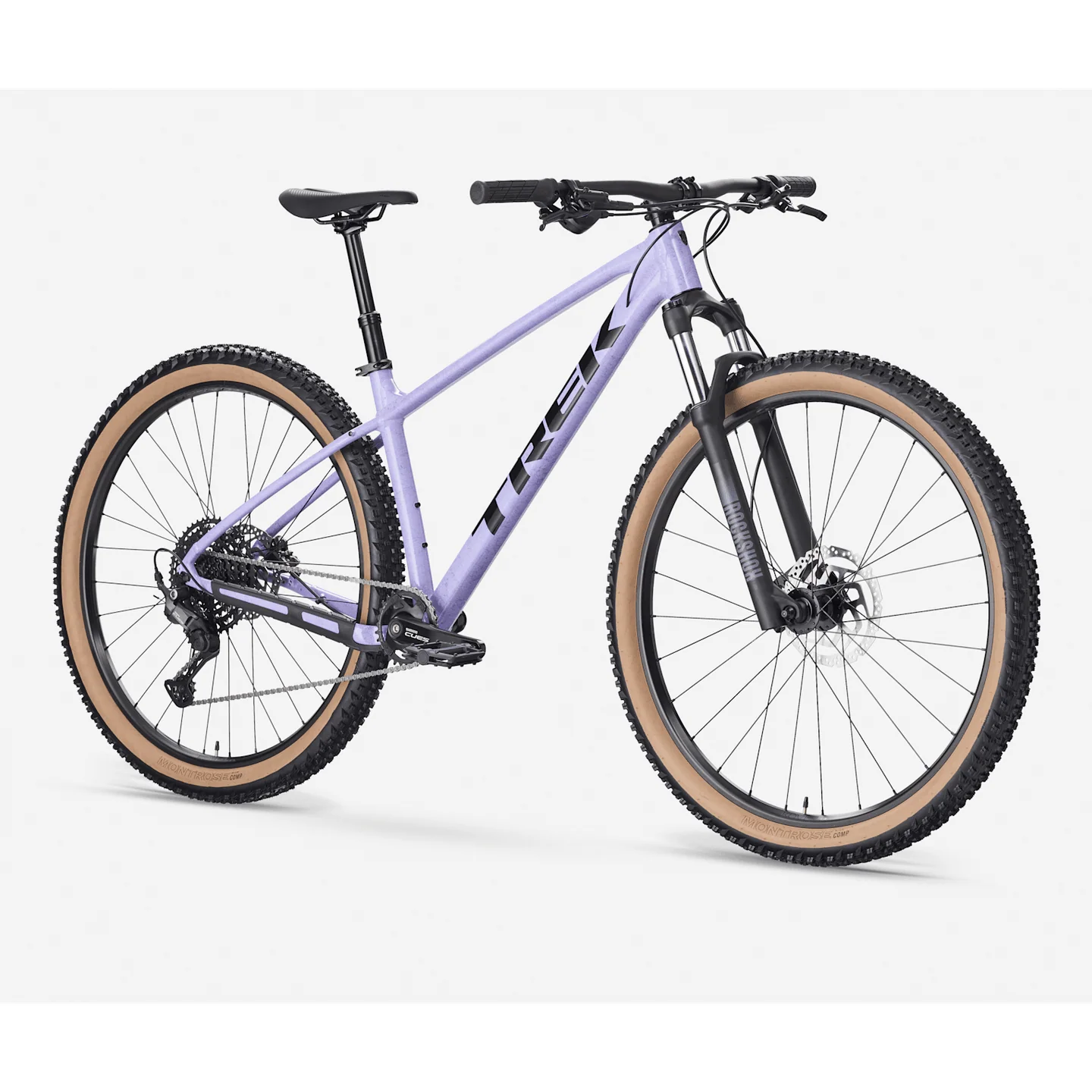

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated, slacker frame geometry makes descents easier to control, while a suspension fork helps smooth out bumpy terrain. Integrated rack and kickstand mounts make it easy to set up for weekday commuting or everyday errands.

• Frame: Alpha Silver Aluminum with internal routing for derailleur & dropper post, rack & kickstand mounts, 135x5mm ThruSkew

  • XS: Curved top tube design

• Fork: RockShox Judy with coil spring, preload & TurnKey lockout

  • XS–S: 27.5" wheels, 42mm offset, 100mm travel

  • M–XL: 29" wheels, 46mm offset, 100mm travel

• Wheels: Bontrager Kovee Tubeless Ready rims (23mm width)

• Hubs: Formula alloy (100mm front / 135mm rear QR)

• Tires:

  • XS–S: 27.5 x 2.40"

  • M–XL: 29 x 2.40"

• Tubeless Ready: Includes Bontrager TLR rim strips

• Shifter: Shimano CUES U6000, 10-speed

• Rear Derailleur: Shimano CUES U6000 GS

• Crankset: Shimano U4000 with 30T chainring

  • XS–ML: 170mm

  • L–XL: 175mm

• Cassette: Shimano CUES LINKGLIDE LG300, 11-48T, 10-speed

• Chain: Shimano LG500

• Bottom Bracket: Shimano threaded cartridge

• Pedals: VP-536 nylon platform

• Brakes: Shimano MT200 hydraulic disc

• Rotors: Shimano RT26 (160mm–180mm size dependent)

• Handlebar:

  • XS: 690mm width, 5mm rise

  • S: 720mm width, 15mm rise

  • M–XL: 750mm width, 15mm rise

• Stem:

  • XS–S: 35mm length

  • M–L: 50mm length

  • XL: 60mm length

• Grips: Trek Line Comp lock-on

• Saddle: Bontrager Verse Short

• Dropper Post:

  • XS–S: 100mm travel

  • M: 125mm travel

  • ML–XL: 150mm travel

• Weight: 15.00 kg / 33.07 lbs (size M)

• Max Weight Limit: 300 lbs / 136 kg (rider + bike + cargo)
