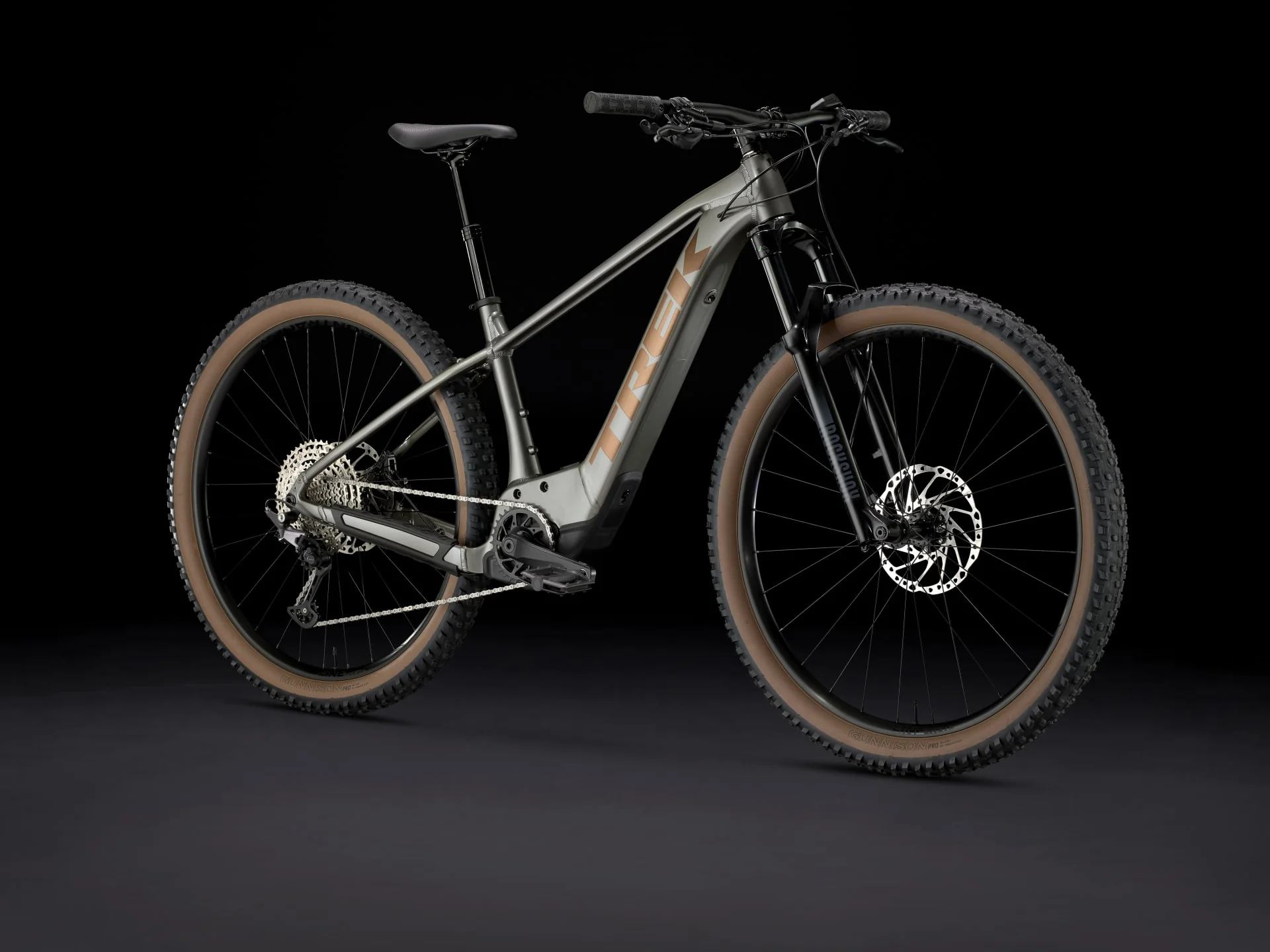

Trek Marlin+ 8
Plug in and get hooked
Soar up trails, through town, and everywhere in between with the ultimate do-anything e-MTB. Marlin+ is an electric hardtail that gives you all the versatility you crave and adds in a simple boost for flattening climbs and cruising with ease. You get features that matter most, like a Bosch drive unit and a confident and capable bike frame – without the hefty price tag. Are you ready to get hooked?
- 29"(XS & S: 27.5")Wheel size
- 120mmFront suspension
- BoschMotor
- 50NmTorque
- 400WhBattery size
Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding farther, and doesn't break the bank, and a 120mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tires and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.
- *Frame
-
Size: XS
Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axleSize: M , L , S , XL
Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle - *Fork
-
Size: XS

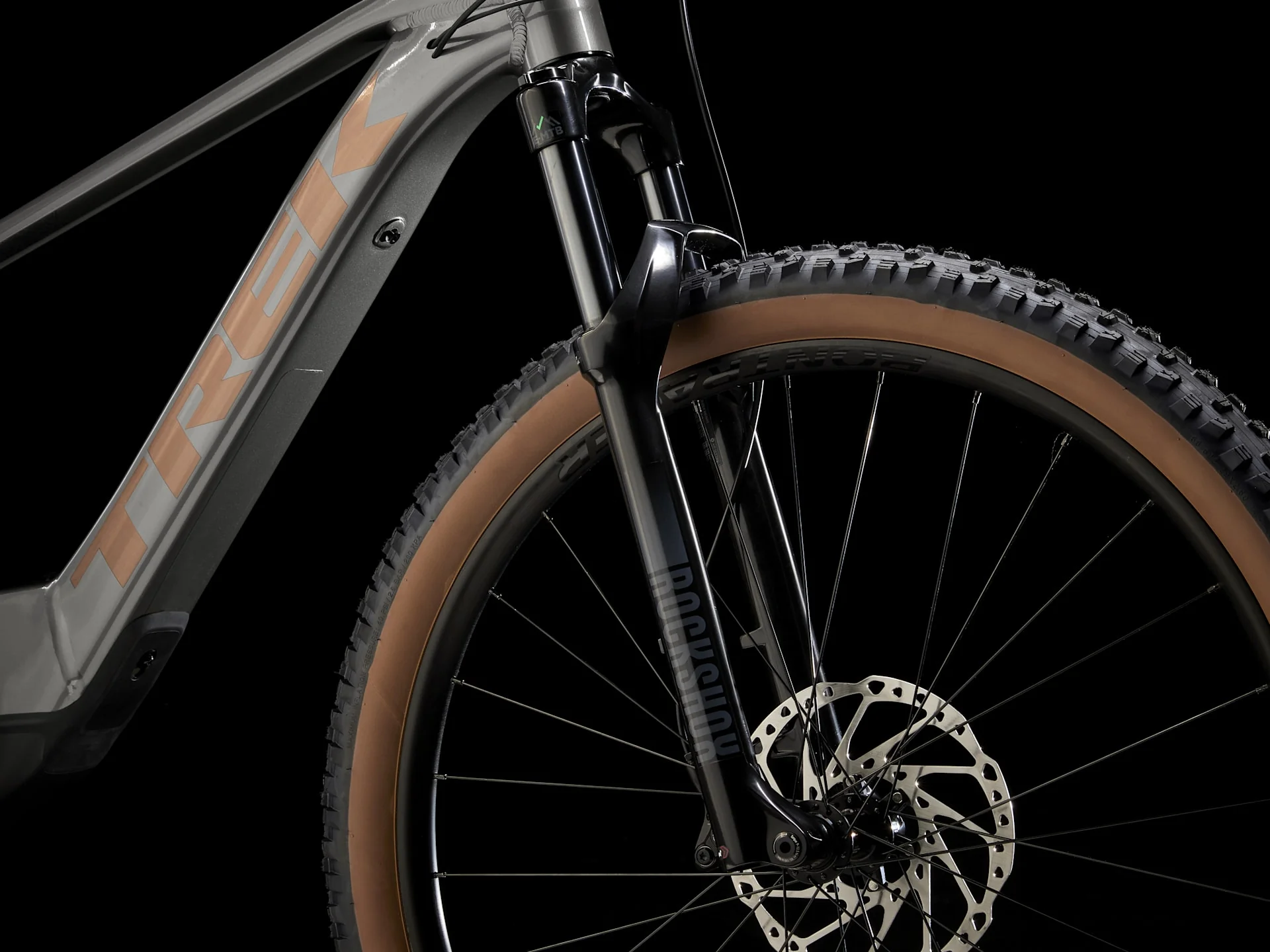

RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 100mm travelSize: S
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 120mm travelSize: M , L , XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
- Hub front
-
Shimano TC500 alloy, centerlock, 110x15mm thru axle
- Hub rear
-
Shimano TC500 alloy, centerlock, 148x12mm thru axle
- Skewer rear
-
Bontrager Switch thru axle, removable lever
- *Rim
-
Size: M , XS , L , S , XL
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valveSize: M , XS , L , S , XL
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve - *Tire
-
Size: XS , S
Bontrager Gunnison Pro XR, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 27.5x2.60"Size: M , L , XL
Bontrager Gunnison Pro XR, Tubeless Ready, Inner Strength sidewalls, aramid bead, 60 tpi, 29x2.60" - Tire part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
Bontrager TLR
- Max tire size
- Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer
- Battery
-
Bosch CompactTube 400Wh
- Charger
-
Bosch standard 2A, 110V, smart system
- Computer
-
Bosch Purion 200
- Motor
-
Bosch Active Line Plus, 50 Nm
- Shifter
-
Shimano Deore M6100, 12 speed
- Rear derailleur
-
Shimano Deore M6100, long cage
- Crank
-
FSA CK-220, 165mm length
- Chain ring
-
FSA, 32T, steel
- Cassette
-
Shimano Deore M6100, 10-51, 12 speed
- Chain
-
Shimano Deore M6100, 12 speed
- Pedal
-
VP-536 nylon platform
- Max chainring size
- 1x: 36T, min 32T
- *Saddle
-
Size: M , XS , L , S , XL
Bontrager Verse P3, chromoly railsSize: M , XS , L , S , XL
Bontrager Arvada, hollow chromoly rails, 138 mm width - *Seatpost
-
Size: XS , S
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm lengthSize: M , L , XL
TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length - *Handlebar
-
Size: XS , S
Bontrager alloy, 31.8mm, 15mm rise, 720mm widthSize: M , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width - Grips
-
Bontrager XR Trail Comp, nylon lock-on
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm lengthSize: M , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm lengthSize: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length - Headset
-
Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
- Brake
-
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
- Brake rotor
-
Shimano RT64, CentreLock, 203 mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 21.49 kg / 47.38 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).OS2
