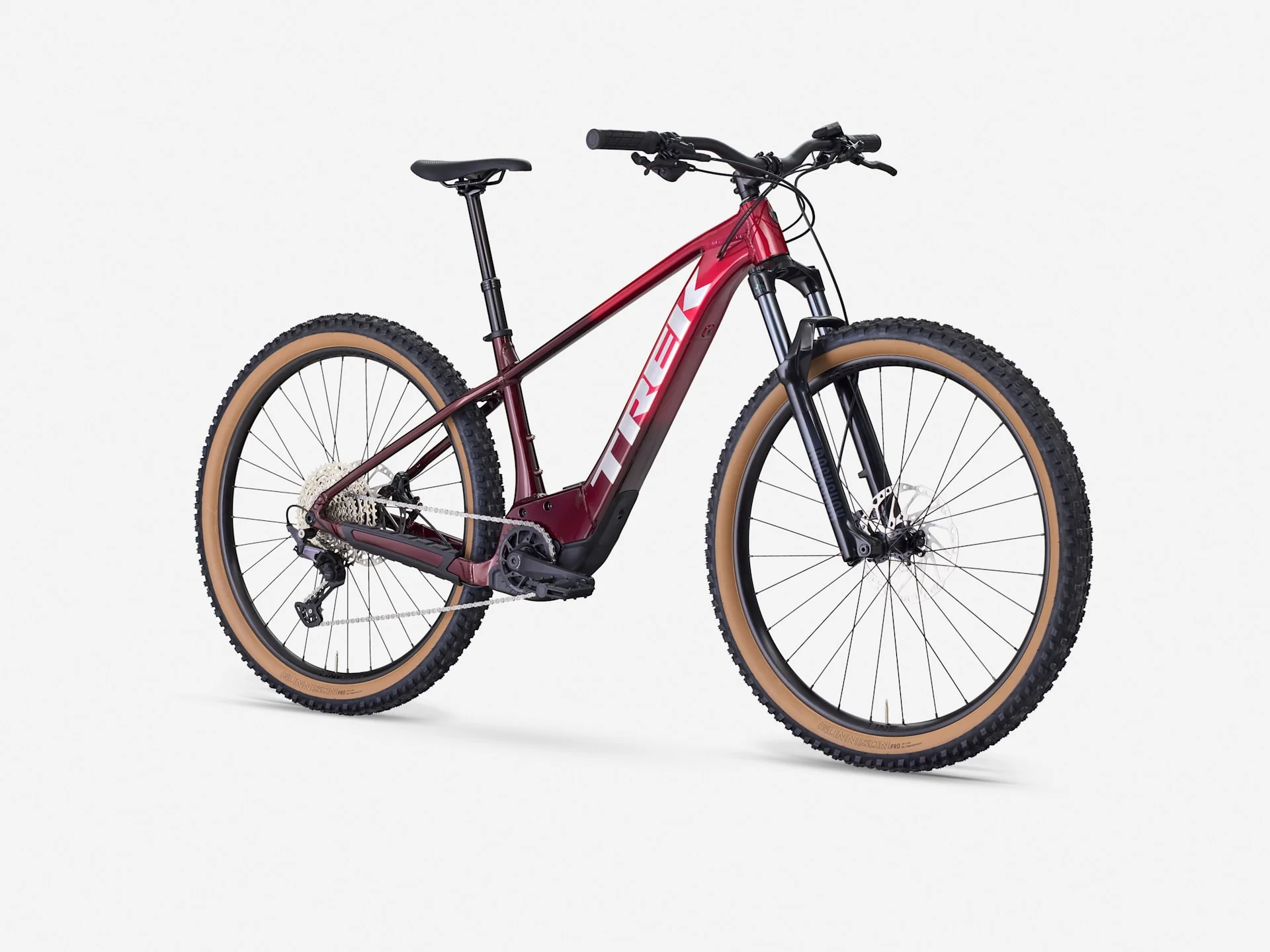

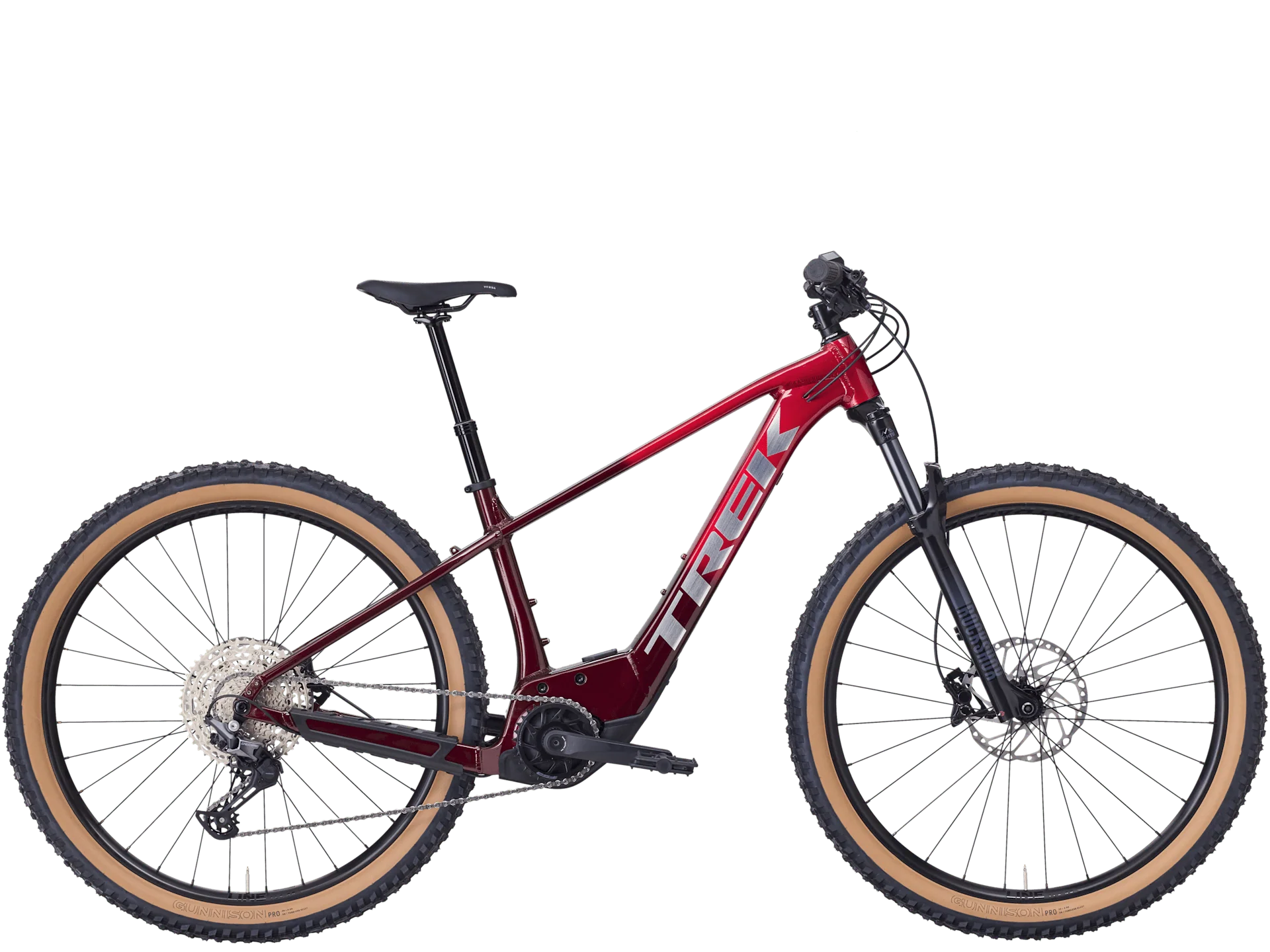

Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding farther, and doesn't break the bank, and a 120mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tires and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

• Frame: Alpha Gold Aluminum with internal routing, rack/fender/kickstand mounts, UDH, Boost148

  • XS: Curved top tube design

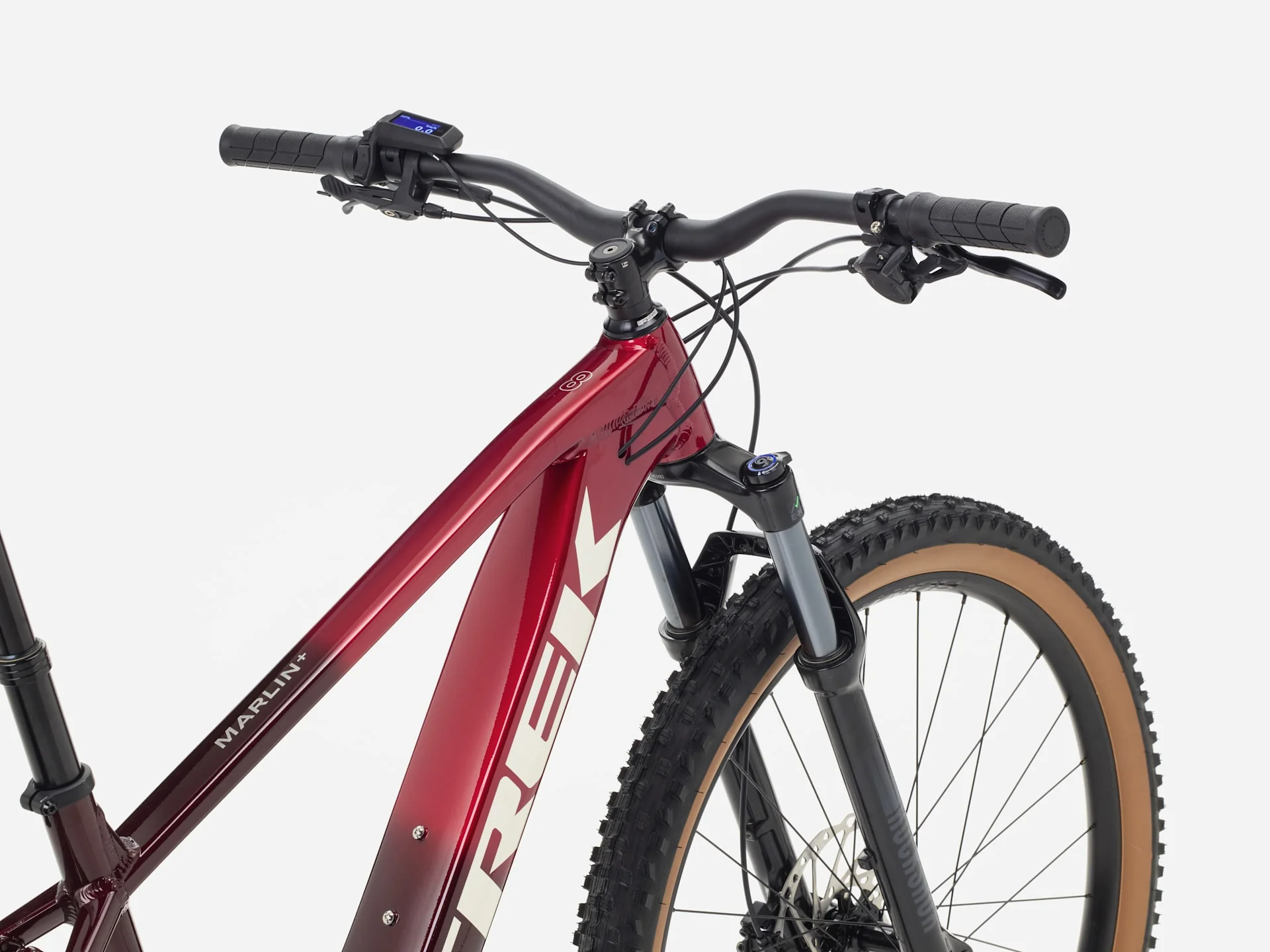

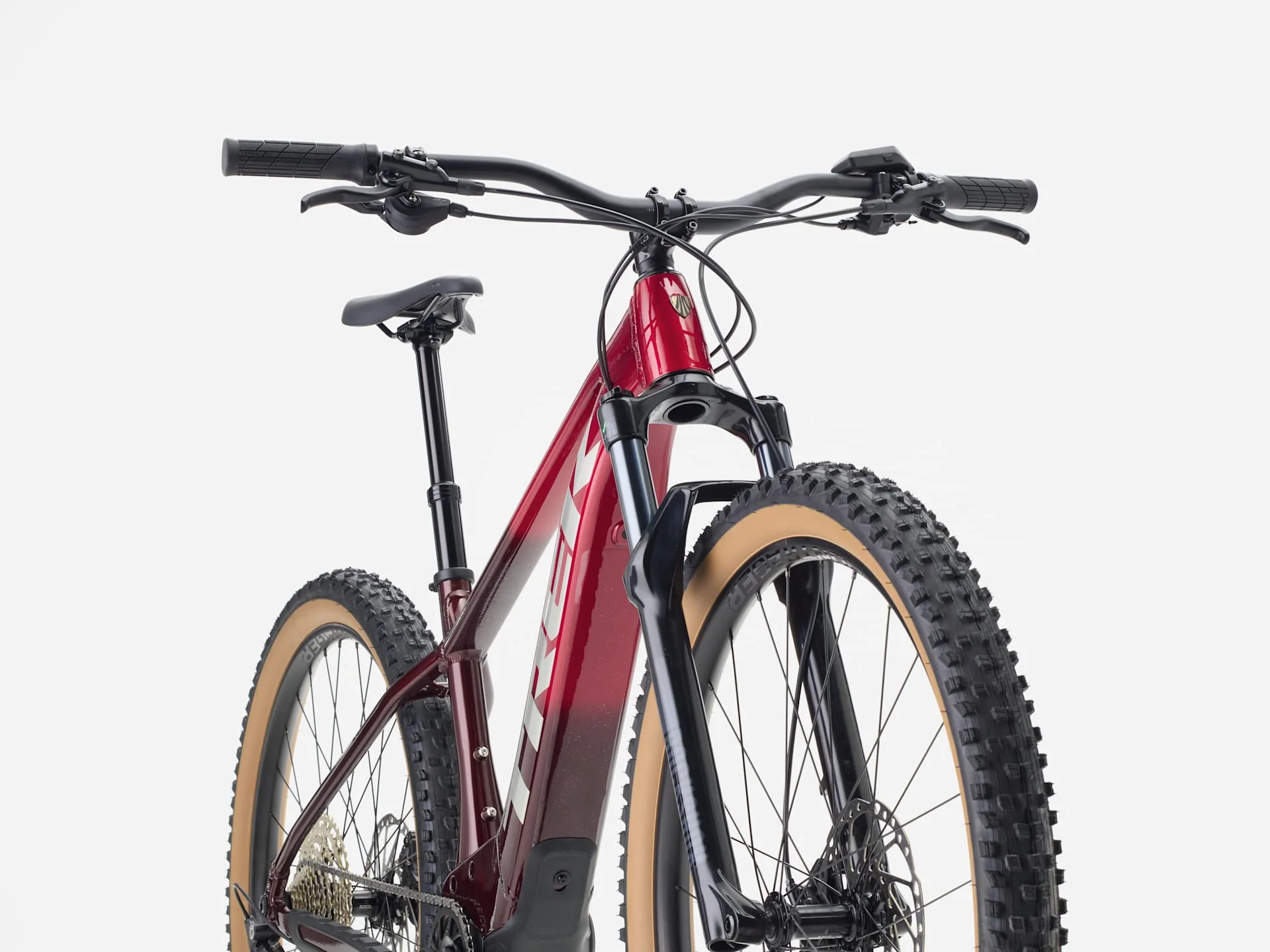

• Fork: RockShox Recon Silver RL with Solo Air & lockout

  • XS: 100mm travel

  • S–XL: 120mm travel

• Wheels: Bontrager Line TLR 30, Tubeless Ready rims

• Hubs: Shimano TC500 alloy (Boost110 front / Boost148 rear)

• Tires:

  • XS–S: 27.5 x 2.60"

  • M–XL: 29 x 2.60"

• Tubeless Setup: Includes Bontrager TLR sealant & rim strips

• Max Tire Clearance: Up to 29 x 2.60" (XS: 27.5 x 2.60")

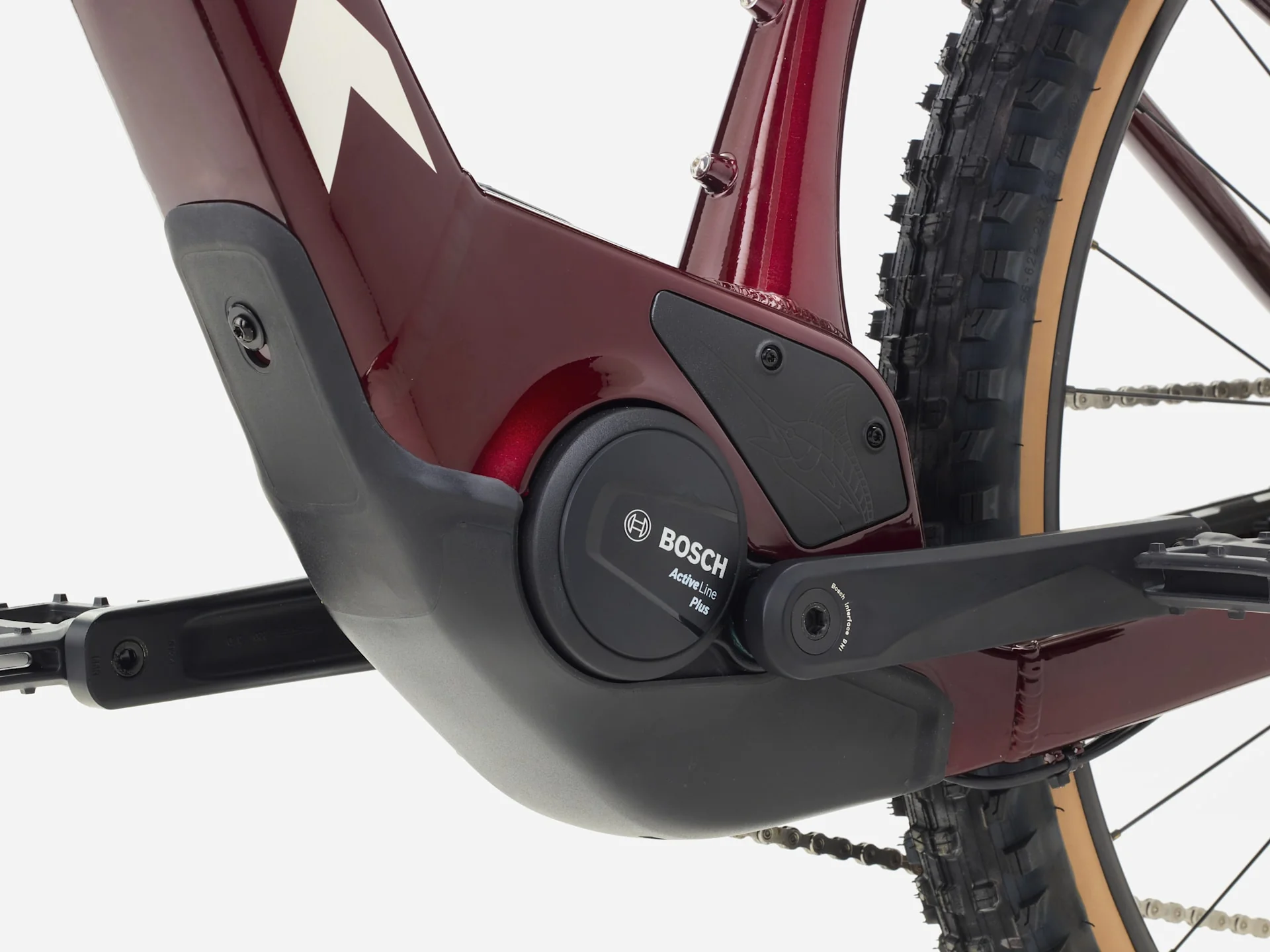

• Motor: Bosch Active Line Plus (50Nm torque)

• Battery: Bosch CompactTube 400Wh integrated battery

• Display: Bosch Purion 200

• Charger: Bosch 2A Smart System charger

• E-Bike Class: Class 1 pedal assist

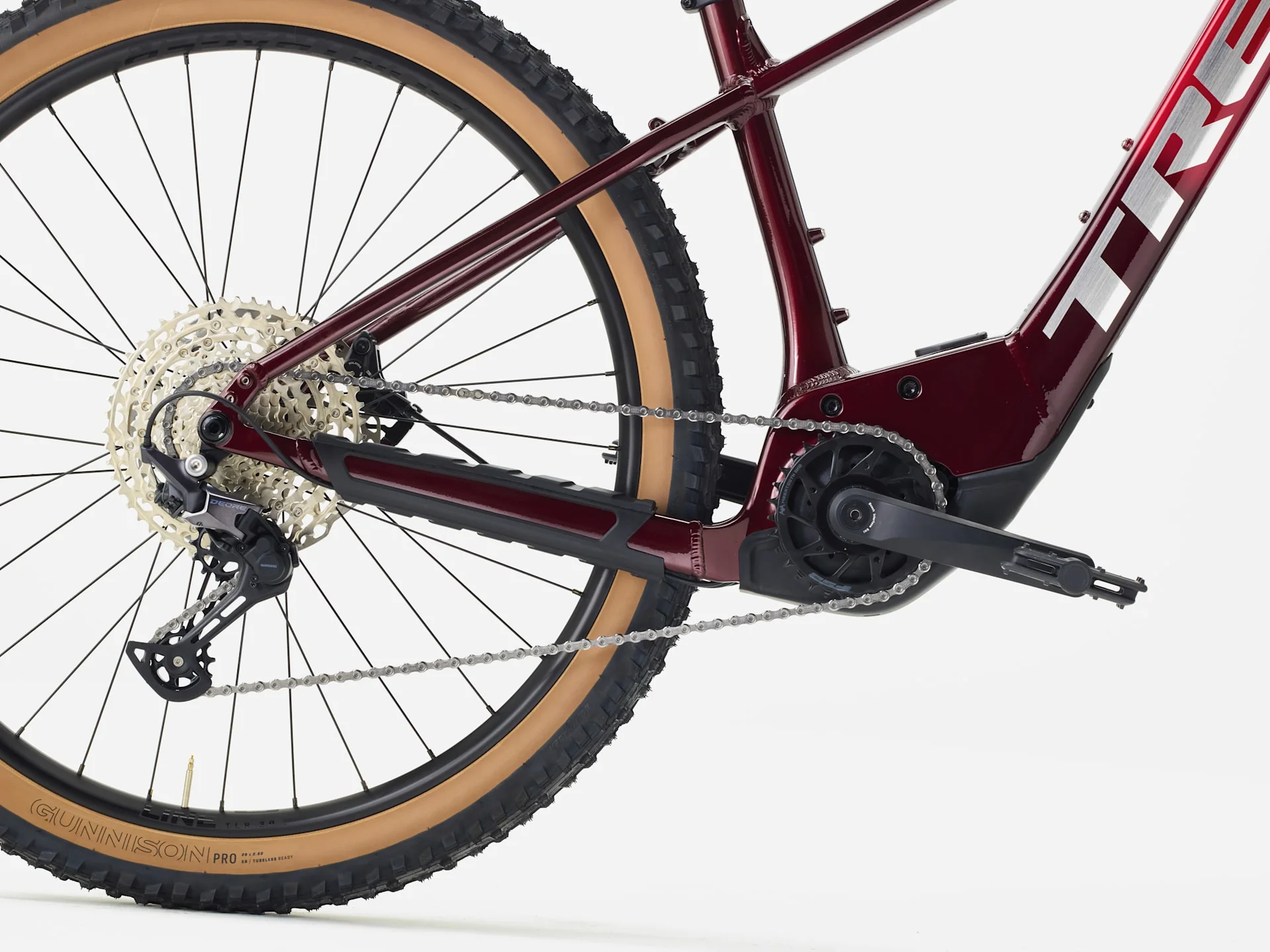

• Shifter: Shimano Deore M6100, 12-speed

• Rear Derailleur: Shimano Deore M6100, long cage

• Crankset: FSA CK-220, 165mm

• Chainring: FSA 32T steel

• Cassette: Shimano Deore 10-51T, 12-speed

• Chain: Shimano Deore, 12-speed

• Pedals: VP-536 nylon platform

• Brakes: Shimano 4-piston hydraulic disc (MT4100 lever / MT420 caliper)

• Rotors: Shimano RT64, 203mm

• Handlebar:

  • XS–S: 720mm width, 15mm rise

  • M–XL: 780mm width, 40mm rise

• Stem:

  • XS–S: 35mm length

  • M–L: 50mm length

  • XL: 60mm length

• Grips: Trek Line Comp lock-on

• Saddle: Bontrager Verse P3

• Dropper Post:

  • XS–S: 100mm travel

  • M–L: 150mm travel

  • XL: 170mm travel

• Weight: 21.89 kg / 48.26 lbs (size M, tubeless setup)

• Max Weight Limit: 300 lbs / 136 kg (rider + bike + cargo)
